Autel Energy Management System (EMS)
Intelligent energy management system for charging stations with dynamic load balancing, solar PV integration, and 4 operating modes. Up to 200 chargers in one system.
4 Operating Modes
DLB, ALM, PV Hybrid, and EMS mode for different deployment scenarios.
Dynamic Load Balancing (DLB)
Automatic power distribution among chargers while respecting connection limits.
Solar PV Integration
PV Hybrid mode with three sub-modes: Full Green, Green Priority, Speed Priority.
Up to 200 Chargers
Supports up to 40 chargers per circuit and 200 in multi-circuit configurations.
Downloads
EMS Installation Manual (PDF)Contact us for a personalized quote and technical consultation.
The Autel Energy Management System (EMS) offers four operating modes for optimal energy management of EV charging stations.
DLB Mode (Dynamic Load Balancing)
Maximizes charging power while keeping total power consumption within a defined range. Ideal for sites with limited grid connection.
ALM Mode (Adaptive Load Management)
Manages both charging power and other loads simultaneously using an external energy meter. Ensures stable operation of the entire site.

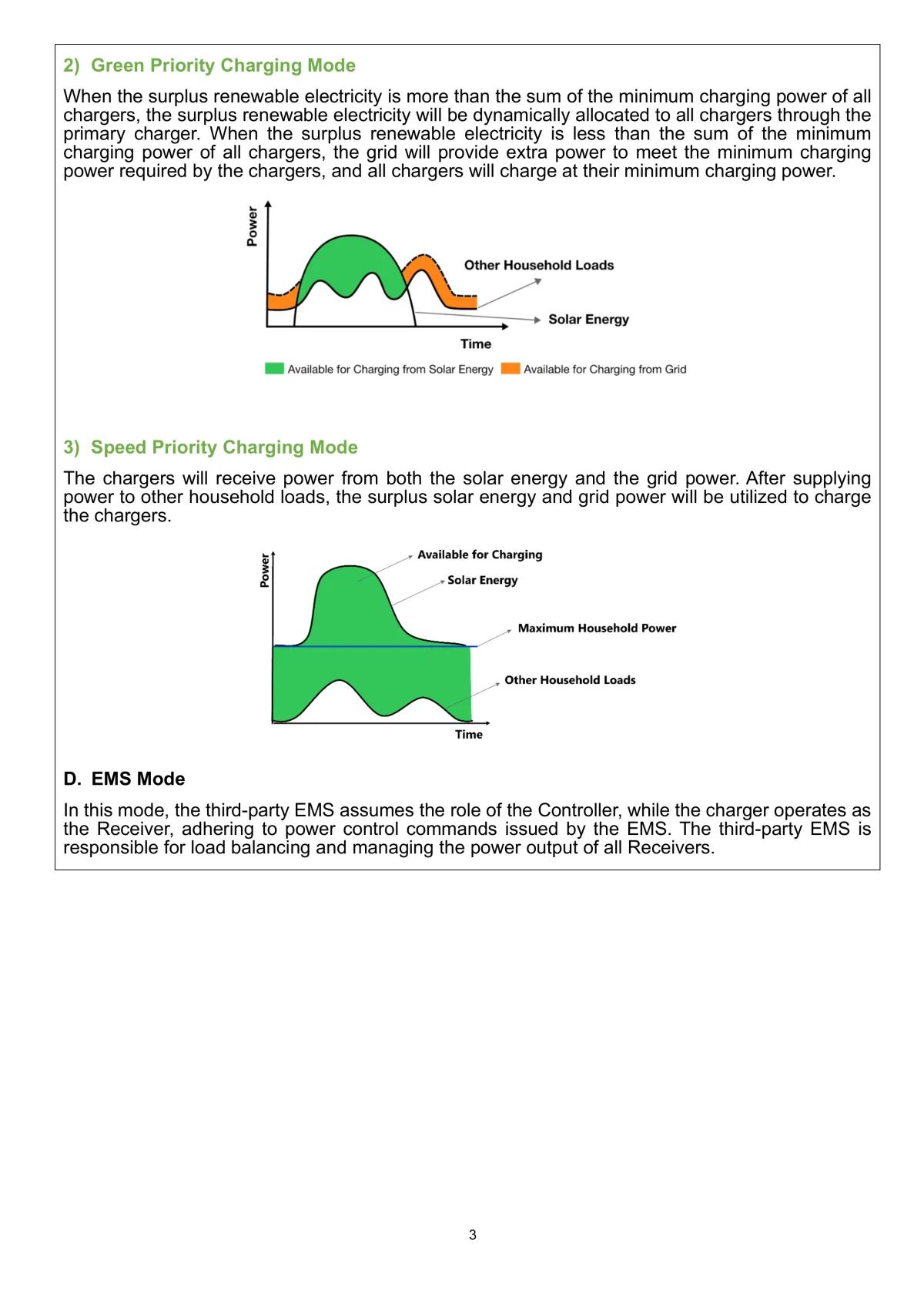

PV Hybrid Mode
Integrates solar energy with charging. Three sub-modes: Full Green (solar only), Green Priority (solar preferred, grid as backup), Speed Priority (solar + grid for maximum speed).
EMS Mode
Third-party control – the charger accepts commands from an external EMS system for advanced control scenarios.
The system supports up to 40 secondary chargers per circuit and up to 200 chargers in multi-circuit configurations. Connected via Wi-SUN, Wi-Fi, or Ethernet.
